Description

A world-class highly insulated folding door system with bottom-slide operation, which combines minimal aesthetics with outstanding performance, very large dimensions with literally low sight lines, enhanced burglar protection with a very large variety of solutions.

Advantages

  • Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width
  • Amazingly reduced sight lines which contributes to the overall minimal design

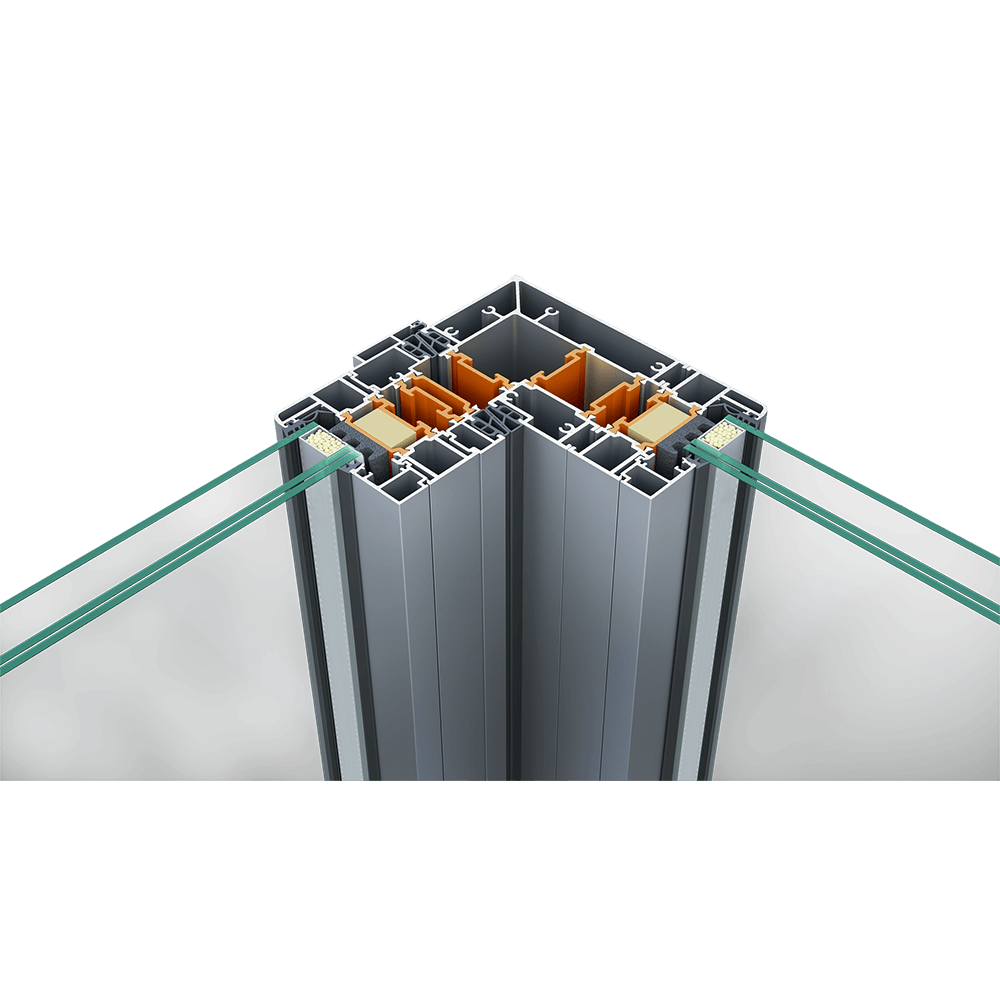

  • Extensive variety of solutions, with odd and even number of vents, corner construction, semi-structural vent version, inwards and outwards opening
  • Extreme performance in terms of air permeability, wind load resistance and water tightness
  • Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)
  • Enhanced levels of security and burglar protection, meeting all sector security standards
  • Smooth operation and long-lasting flawless functionality
Enquire about this product

Generic

Panel type

Bottom slide

Thermal insulation

Yes

Aesthetics

minimal, relatively low sight line

Panel

aluminium framed panel, semi-structural panel

Applications

residential with 1.5m panel width, commercial with 4.0m panel height, high-end projects

Technical characteristics

Sash width

85 mm

Glazing

21-58 mm

Polyamide

Souble 40 mm

Extra insulating fittings

Alumil energy bar insulation and PE insulation foam

Main gasket

Single from co-extruded EPDM and foam

Locking

Quadruple locking latches

Visible aluminium

105 mm

Maximum weight

200Kg/ vent

Maximum height

4.0 m

Maximum page width

1.5 m

Performance

Water tightness

7A/9Α (with subsill), IFT

Air permeability

class 4, IFT

Wind load resistance

class C3/B3, IFT

Burglar resistence

RC2 IFT & PAS24 (UK)

Characteristics

Thermal performance

1.1 W/m²K, IFT

Media gallery

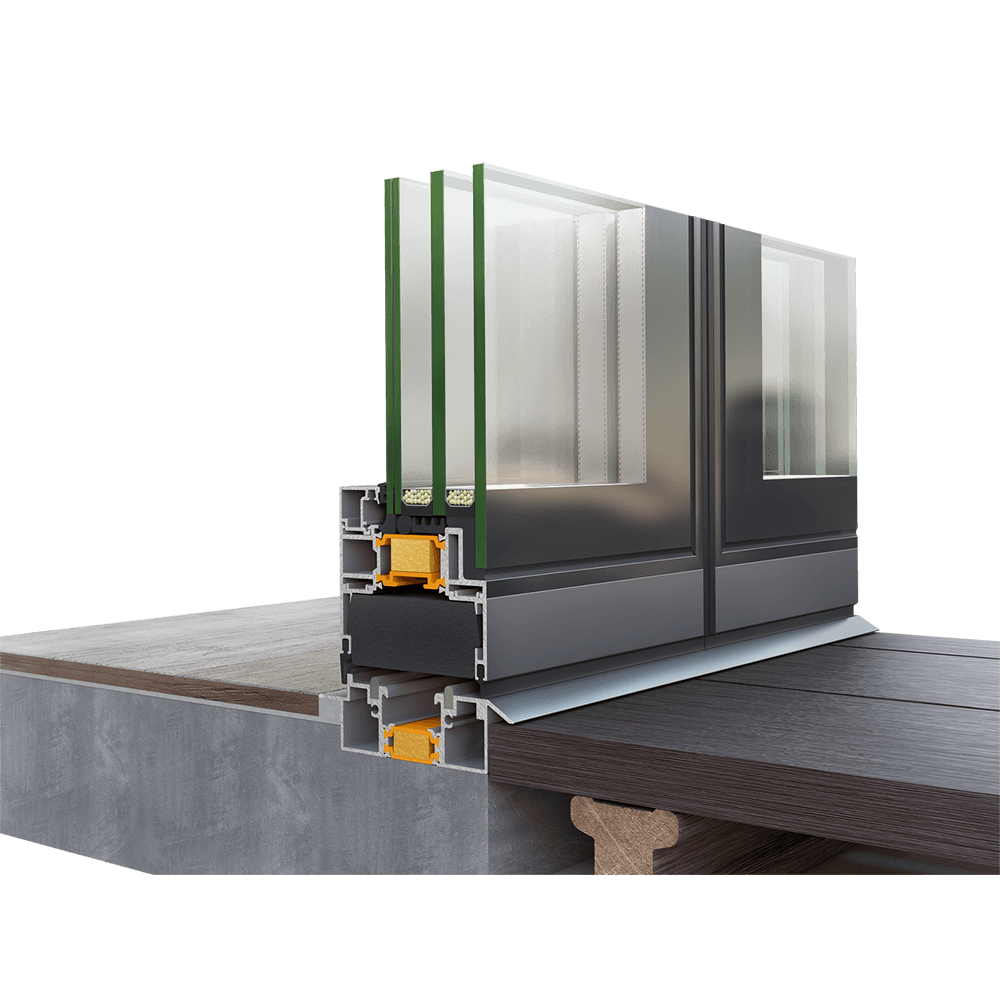

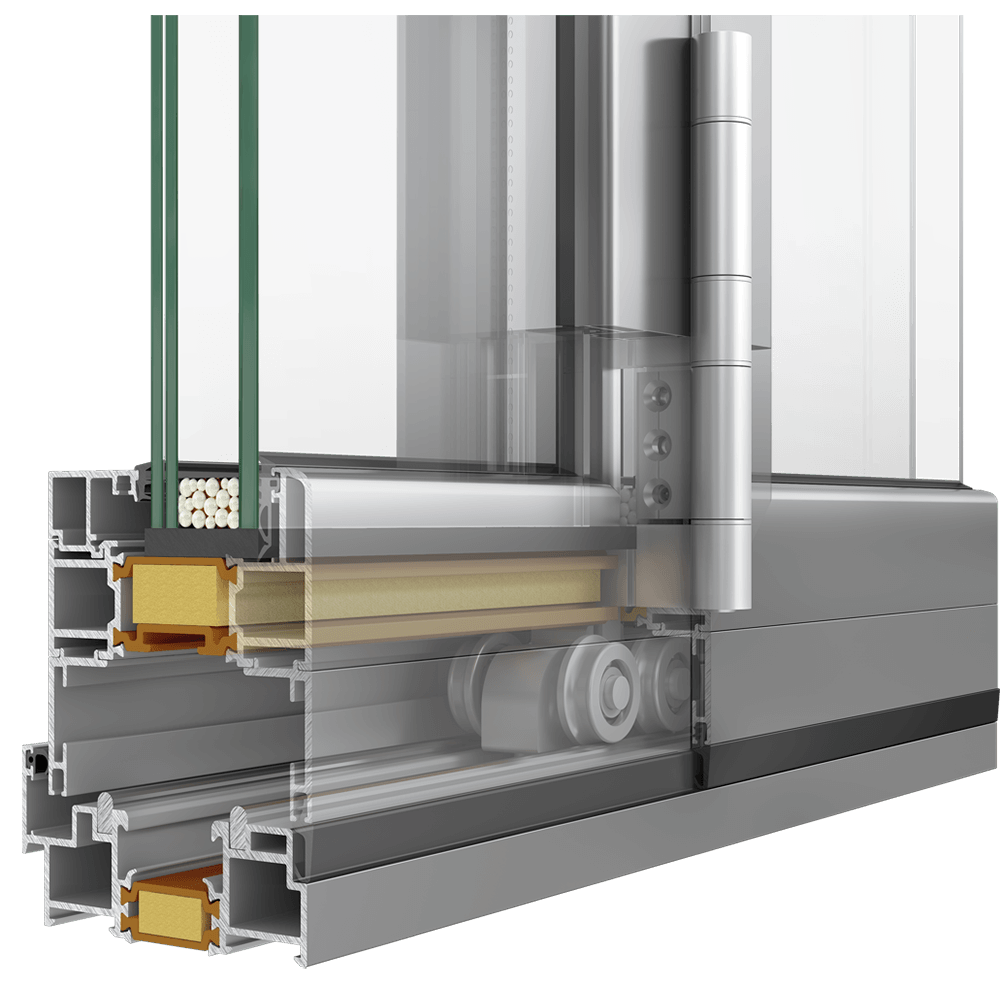

Sections
