Description

Minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.

Advantages

  • Enhanced natural light thanks to the system’s minimal design and the wide glazing surfaces
  • High energy savings thanks to exceptional energy efficiency
  • High-security level
  • Exceptional sound insulation
  • Maximum ease of use and high functionality
  • Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version Urban S650 PHOS Eclipse)
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies
  • Ideal for wide spans
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
Enquire about this product

Generic

Window types

Sliding

Thermal insulation

Yes

Exterior shapes

Flat

Technical characteristics

Sash depth

62 mm

Minimum visible aluminium face height

Concealed profiles

Minimum visible aluminium face width at the central vertical column (interlocking profile)

25 mm

Glazing type

Double – Triple

Maximum glazing thickness

up to 46 mm

Mechanism

Lift & slide mechanism

Sealing method

Perimetrical with tri-fin brushes

Minimum threshold height

35 mm

Type of thermal insulation

Polyamides, PVC

Performance

Water tightness

CLASS 9A

Air permeability

Class 4

Wind load resistence

C3

Burglar resistence

RC2

Sound reduction

46dB

Air permeability

Class 4

Characteristics

Types of typology

Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies

Sash weight

up to 1000 Kg

Media gallery

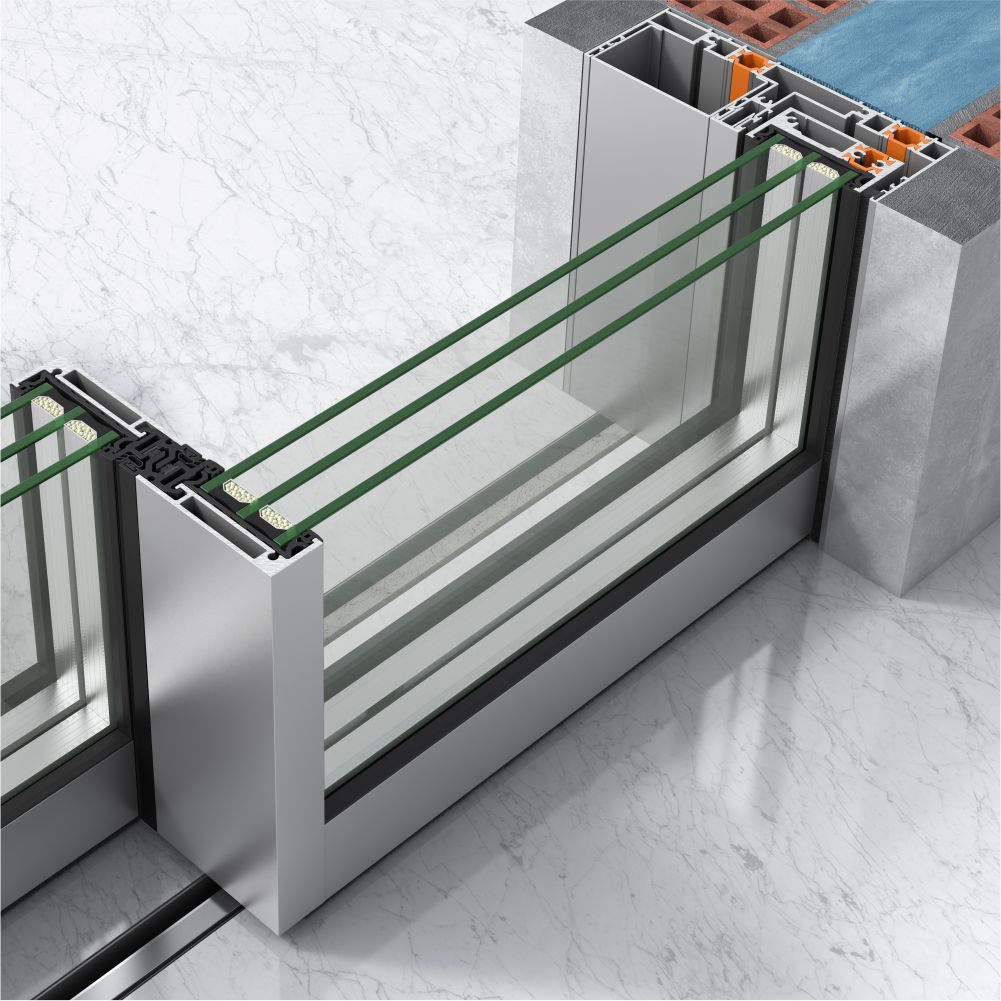

Sections
