Description

The system Urban S77 is Core Aluminiums’s proposal for advanced insulating casements, which meet the high standards of all advanced markets and incorporate a modern design. It is the ideal solution for projects that require high performance and maximum security.

Advantages

  • Very high energy savings thanks to high energy efficiency (Passive House certified)
  • High security level
  • Exceptional sound insulation
  • Ease of use and high functionality
  • Modern design
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies and solutions
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
  • Suitable for Passive House constructions in regions that lie in warm/temperate climate zone
Enquire about this product

Generic

Window types

Hinged

Thermal insulation

Yes

Exterior shapes

Flat, curved

Technical characteristics

Sash depth

77 mm

Minimum visible aluminium face height

93 ..

Minimum visible aluminium face width at the central vertical column (interlocking profile)

122 mm

Glazing type

Double – Triple

Maximum glazing thickness

from 24 up to 72 mm

Mechanism

Euro-groove, Euro-nut

Sealing method

Perimetrical at 3 levels with EPDM & foam EPDM gaskets

Minimum threshold height

13 mm

Performance

UW

from 0,85 up to 1,4 W/m2K

Water tightness

Class E1350

Air permeability

Class 4

Wind load resistence

C5/B5

Sound reduction

42 dB

Burglar resistance

RC2/RC3

Characteristics

Types of typology

For all tilt & turn typologies, pivot windows

Shash weight

up to 180 Kg

UF

from 0,85 to 2,42 W/m²K

Media gallery

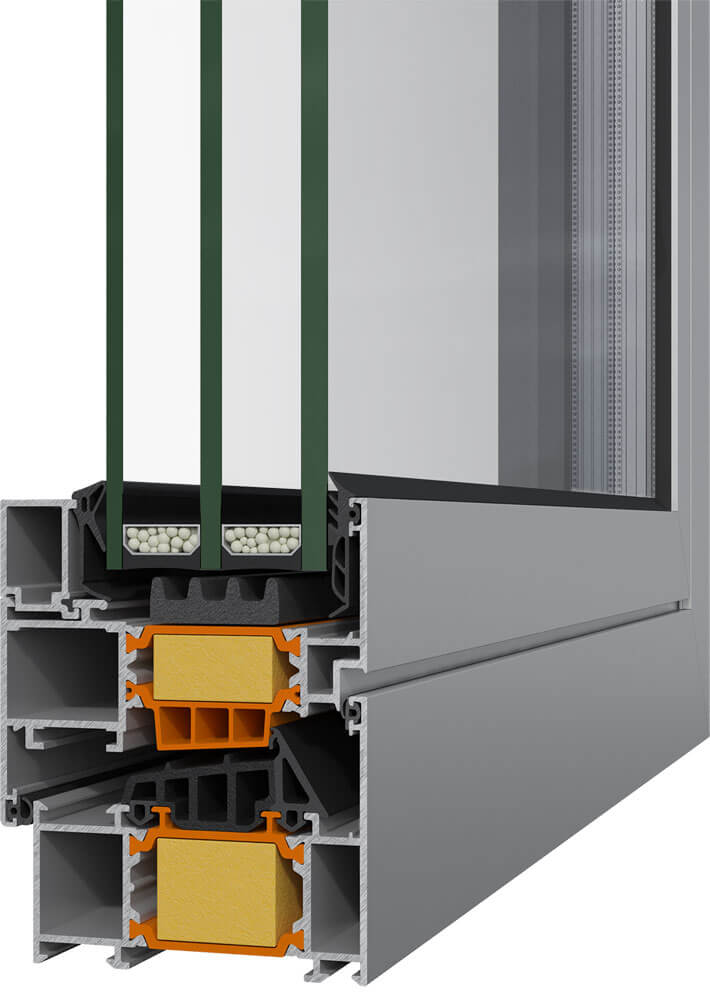

Sections
