Description

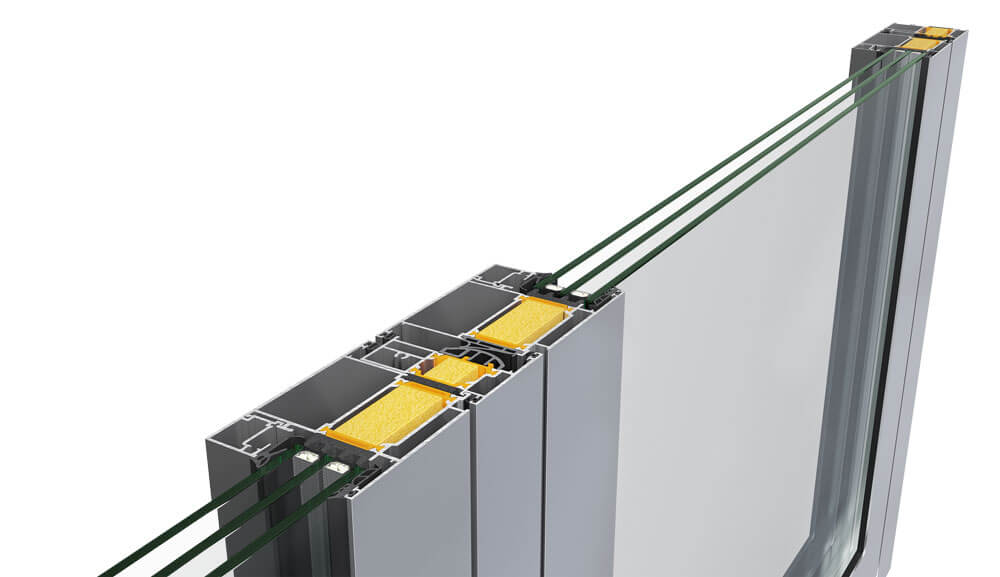

Urban SD77 is Core Aluminium’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.

Advantages

  • High energy savings thanks to high energy efficiency
  • High security level
  • Modern design
  • Ease of access, ideal for people with special needs and children
  • Exceptional sound insulation
  • Ease of use and high functionality
  • Wide variety of typologies and solutions
  • Exceptional quality with certified performances
Enquire about this product

Generic

Thermal insulation

Yes

Exterior shapes

Flat

Technical characteristics

Frame depth

77 mm

Glazing type

Double – Triple

Maximum glaxing thickness

23 up to 59 mm

Mechnism

Perimetrical locking mechanism

Sealing method

Perimetrical at 3 levels with EPDM gaskets

Minimum threshold height

22 mm

Types of thermal insulation

Polyamides 40 mm width, Core Aluminium Energy bar, Insulation foam

Performance

UW

from 0,7 W/m²K

Water tightness

CLASS 7A

Air permeability

CLASS 4

Wind load resistance

C4/B4

Burglar resistance

RC2

Characteristics

UF

from 0,9 up to 1.9 W/m²K

Types of typology

For all entrance door typologies with glass or aluminium panels

Sash weight

up to 180 kg

Minimum visible aluminium face height

117 mm
