Description

The Urban S650 e-MOTION is the automated version of the Urban S650 PHOS series. The elegant design and the electrical automation offering maximum ease of use, make it the perfect solution for projects that require impressive wide spans with the uninterrupted view, as well as perfect comfort.

Advantages

  • Maximum ease of use and high functionality thanks to the automatic motion
  • Enhanced natural light thanks to the system’s minimal design and the wide glazing surfaces
  • High energy savings thanks to exceptional energy efficiency
  • High security level
  • Extremely safeuse thanks to the system’s sensors and to safe operation in case of blackout
  • Exceptional sound insulation
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies
  • Ideal for extremely wide spans
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
Enquire about this product

Generic

Window types

Sliding

Thermal insulation

Yes

Exterior shapes

Flat

Technical characteristics

Sash depth

67.4 mm

Minimum visible aluminium face height

Concealed profiles

Minimum visible aluminium face width at the central vertical column (interlocking profile)

25 mm

Glazing type

Triple

Maximum glazing thickness

up to 46 mm

Mechanism

Alumil

Sealing method

Perimetrical with tri-fin brushes

Minimum threshold height

Hidden profiles

Performance

UW

1,1 W/m²K

Water tightness

Class E1050

Air permeability

Class 3

Wind load resistence

C3

Characteristics

Types of typology

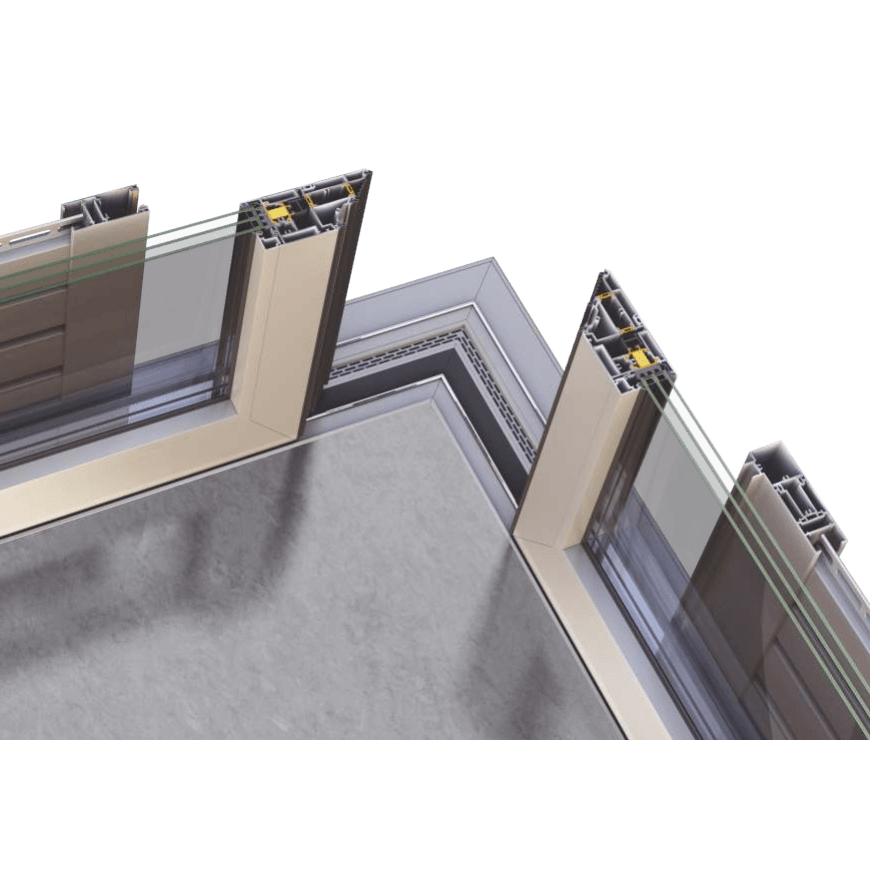

Double horizontal sliding sashes, Meeting stile, Corner typologies

Shash weight

up to 1000 Kg

Sections
